How to Monitor CPU & GPU Temperatures:
(2019 Edition : The Easiest way)

Are you facing performance issues with your Computer after few minutes of use?

Fed up of those lags?

You might be wondering:

Why is this happening?

Short answer:

It depends.

Long answer:

aio-liquid-cooler-10scopes

There may be many reasons. I will tell you only one reason now for which this problem happens 99% of the times.

I think you will agree with me when I say:

You start to feel undesirable performance & lags gradually after running the PC for some time.

It’s very Simple.

Your PC is getting hotter from time to time by overload.

In fact, high temperature of your CPU and GPU can reduce your computer's performance drastically.

That's why, I am here to help you out monitoring your computer’s CPU and GPU temperature and also to let you know about how to control it.

3 Easiest Methods to Check CPU Temperature

Do you know? High CPU temperature reduces your computer’s performance while multi-tasking, video editing & rendering. Sadly it can also cause bottlenecks and lags while playing your steam games.

It’s obvious that:

Your CPU will perform better if the temperature is tolerable.

Moreover, you will be able to overclock your CPU according to your need if you can monitor it’s temperature easily.

Here I am describing three easy methods to check CPU temperatures.

1. BIOS

The simplest way to check the CPU temperature from a computer without installing any app is using BIOS.

While starting or restarting your PC you need to enter the BIOS by simply clicking the Bios key (usually “F2” key or the “Del” key).

rog-bios

Different motherboard’s bios have different interfaces.

But it’s nothing to worry about.

You will see a “Hardware Monitor” tab in the bios where you will find the CPU temperature.

2. CPUID HWMonitor Software

It is a hardware monitoring application that reads system data like voltages, temperatures, fans speed.

Here is the CPUID official website (you can download the application from here)

After downloading and installing this application you can check the temperature just by opening the application.

hw-moinitor

3. CPU utilities

Intel and AMD have individual app to overclock and check the status of their Processors.

For Intel processors, You will need the app “Extreme Tuning Utility”.

intel-extreme

For AMD processors you will require “Ryzen Master”.

ryzen-master

Both of these utility apps are easy to use and you can check your CPU temperature just by opening the app.

Optimal Temperatures of Intel/Amd CPUs with Stock Cooler

The optimum or suitable temperatures of some popular CPUs (without overclocking) are shown below:

Intel processors of 6-8th generations

Average Temperature in Celsius

Intel Core i9

53°C - 72°C

Intel Core i7

50°C - 67°C

Intel Core i5

50°C - 63°C

Intel Core i3

52°C - 60°C

Intel Pentium

45°C - 62°C

AMD processors of ryzen
(1-2nd generations)

Average Temperature in Celsius

Threadripper

45°C - 70°C

Ryzen 7

42°C - 62°C

Ryzen 5

40°C - 58°C

Ryzen 3

38°C - 55°C

AMD Athlon FX

45°C - 60°C

3 Best Techniques to check GPU Temperature

High GPU temperature can get you into a huge trouble while working with graphics or playing games.

It gets worse:

Specifically, When you face lags while you are in the middle of any important e-sports title. Right?

Just so you know, the less the temperature of GPU the better it will perform. You can check GPU temperature through different applications (tweaks).

Usually most GPU's have a specific temperatures at idle and load. These are called optimal temperatures of the GPU.

If the temperature increases more than the optimum temperature it will start to lose it’s performance gradually.

You can easily determine the temperature of your graphics card by using any of these following ways:

1. CPUID HWMonitor for GPU

As i mentioned earlier, CPUID can read all the important system health data.

As a result, You can monitor both your CPU and GPU with it.

And the process is same.

All you have to do is, install the application and open it.

There! You'll find all the essential information about your GPU.

2. GPU-Z Utility

This is an application by TechPowerUp and it is very popular for checking vital information of graphics cards.

Here is the download link of GPU-Z from their official website.

In this application you will see a tab 'sensors' click that and you will be able to see the temperatures in detailed view. For more detailed information you can click the 'advanced' tab.

Page-11-Image-5

3. GPU Tweaking ​Softwares

You can easily get GPU tweaking apps from the drivers of graphics cards.

Different GPUs support different apps. For example TriXX for Sapphire cards, XOC for EVGA cards etc.

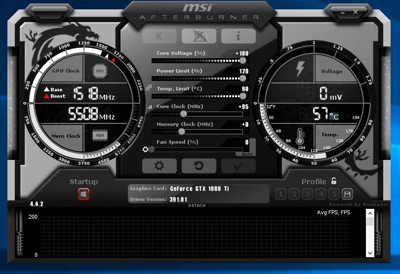

You can also try downloading the MSI Afterburner app which will support every graphics card.

Here is the download link of GPU Tweaking App from their official website.

This app will show you the GPU temperature and it is useful for overclocking the card as well.

Want to know the best part?

Msi Afterburner is supported in every graphics card.

msi-afterburner

Optimal Temperatures of Nvidia/Amd GPUs (Reference Cards)

Here is a chart for you to know about the normal temperatures of some Nvidia and AMD GPUs.

Nvidia Graphics Cards

Temperature at idle condition

Max Temperature under load

Rtx 2080ti

34°C

96°C

Rtx 2080

34°C

96°C

Rtx 2070

36°C

95°C

Gtx 1080ti

37°C

94°C

Gtx 1080

39°C

95°C

Rtx 2060

35°C

93°C

Gtx 1070

39°C

94°C

Gtx 1160

37°C

96°C

Gtx 1060

38°C

94°C

Gtx 1050ti

35°C

92°C

AMD Graphics Cards

Temperature at idle condition

Max Temperature under load

Vega VII

42°C

89°C

Vega 64

45°C

85°C

Vega 56

44°C

75°C

Rx 590

42°C

80°C

R9 Fury x

50°C

65°C

Rx 580

40°C

69°C

Rx 570

38°C

74°C

Rx 480

40°C

80°C

What Causes High Temperatures in CPU & GPU?

There are many reasons for high temperatures of CPU & GPU. Some of the major reasons are:

1. Drying up of the thermal paste used in CPU and GPU after a certain period of time.

2. Stock coolers cannot handle much heat.

3. Bad air flow inside the case of the PC.

4. Lack of ventilation inside the case.

5. Lack of intake and exhaust fans in the case.

6. Bad cable management inside the case blocking air flow.

7. Keeping the case in a congested place.

How to Lower CPU & GPU High Temperatures

You can take the following measures to get an instant result in preventing high CPU & GPU temperatures:

•Using a good CPU cooler for processors (air cooler/liquid cooler).

•Applying good quality thermal paste every year.

•Keep more intake and exhaust fans for better air flow inside the casing.

•Control the fan speed of CPU cooler, GPU and case fans according to need.

•Keep the cables in such a manner that they don’t create obstructions to air flow.

•Make sure to build the PC in such a way that heat of GPU doesn't reach the CPU.

•Build the PC in a well-ventilated casing.

•Clean the interior part of the pc in a regular basis of 3 months at least.

Bonus Tip for Reducing Temperatures:

From BIOS or from other tweaking apps set the speed of the intake and exhaust fans to 75%.

While playing games or running load giving apps, set the fan speed of the GPU to 90%.

Try to use at least one liquid cooled component (either CPU or GPU) which will save one component's heat from another.

I will recommend you to get atleast an AIO cooler for your CPU as these are more convenient and price worthy.

The Basics of PC Cooling Solutions Explained

First of all you need to understand how the cooling solution for your PC should be. Before advancing further, we will first divide the cooling system into 5 types.

Which are:

1. Stock CPU & stock GPU cooler
2. Third party Air cooler CPU & stock GPU cooler.
3. AIO liquid cooler for CPU & stock GPU cooler.
4. Custom liquid cooling system for both CPU and GPU.
5. Custom liquid cooling systems for CPU & GPU separately.

Now it is time to:

Choose the right cooling system for your PC.

First of all you need to know the type of PC you are using. Accordingly you will choose the right cooling solution.

If you are using a PC of normal configuration like, non-overclocked CPU & GPU and you are not doing any hardcore stuff then you don’t need to expend on coolers. You are good to go with the stock CPU and GPU coolers.

But if you are using a gaming/workstation /editing PC then you must have a good cooling system for your PC.

Graphics cards can be overclocked easily with their stock coolers but the PC need to have good ventilation facilities.

But the problem is:

Most of the processors can’t be overclocked by the stock coolers. So, you need a third party air or liquid cooler for that.

And if you are running a beast gaming PC then you need a custom liquid cooling system.

Air Cooling Vs Liquid Cooling

I believe you’ll agree when I say, “Efficient PC cooling can give you an instant change in the performance of your PC.” Right?

Well, I've been there myself, getting confused with thousands of coolers.

A good PC always needs a good cooling solution to give the best overclocking results.

Not only this, coolers can:

Turn your PC into a Piece of Art.

But it might be confusing to you that, which type of cooling components to use for your system.

In this article I will be giving you some fantastic ideas to cool your PC'S CPU and GPU.

I will also give some instructions on your PC’s cooling system according to its need.

Then I will suggest you which cooler is for you.

At the end, there is a comparison of different coolers

Before going to the instructions and suggestions, you can have a look at some of the most popular air and liquid CPU coolers for your PC given here:

What is Better Air cooled or Liquid Cooled?

Before going to any comparison you need to know which is best for your PC case.

Air coolers can perform their best if there is a good ventilation inside your case. It will perform better for more fans in your PC case

On the other hand liquid coolers are suitable for those PC cases which have radiator mounting options.
The best thing about AIO Liquid coolers is:
The hot air coming from the GPU can’t effect the cooling of the CPU.
But AIO liquid cooler needs more power and more space inside the case as their tubing are hard to bend.

Other than that of a air cooler and AIO liquid cooler, there is another way to cool the system.
And this is by Custom Liquid Cooling.

Custom liquid cooling turns your PC into a piece of art.

And this gives you the best overclocking results.

But the main problems are:

It is very expensive and requires a lot of time and hard work to setup up.

Benchmarks for Air Cooler Vs Liquid Cooler 2019

To tell you which is the best among air and AIO cooler in case of performance we have make some benchmarking tests.

So, for this comparison I have used NZXT S340 elite as our case in the benchmarking PC. 4 fans are at 800rpm speed.

Specifications:

Core i7 8700k overclocked to 4.8GHz,evga gtx1080 GPU clock +180MHZ memory Clock +200MHz,Corsair dominator Platinum 16GB Ram overclocked to 3200MHz, PSU 750w gold rated.

Coolers:

Air cooler: Cooler Master MA620p

AIO liquid cooler: Cooler Master ML240R

Stress test tools used:

CPU stress Testing, Memtest 64, Furmark, Unigine Heaven

Test results:

Components

Average Temperatures fro Air Cooler

Average Temperatures for AIO liquid Cooler

CPU

72°C

70°C

GPU

65°C

61°C

Clearly, AIO liquid cooler is the winner here but it’s not like that AIO is the most suitable for your PC.

What’s the bottom line?

It may vary from PC to PC for different parts in them.

Here are the things that really matters:

Other than performance, you might find some issues from both air and AIO liquid coolers.

It gets worse:

When the tubing of AIO liquid cooler is not long enough according to the need of your PC’s case.

On the other hand, most of the smaller air coolers easily fit inside the case. But few of the coolers are very big to be fit in smaller compact cases.

It gets even worse:

When larger air coolers make clearance issues with the memory modules. Fitting an AIO liquid in some cases may be very hard. But they mostly don’t have problem in clearance issues with the rams.

One the other hand cleaning of an air cooler is easier than that of an Aio liquid cooler as the radiator gets filled with dust within few months.

Want to know the best part?

You can be totally risk free using an Air cooler. If you get an air cooler you will not have to worry about any leakage.

AIO liquid coolers are often heard to get leaks. This can completely ruin some of the expensive major parts of your PC.

It’s your choice now to:

Select the most suitable cooler for your PC.

If you have a big budget and you want the best of the bests in your PC then custom liquid kit is your thing.

Else you can go for an AIO liquid cooler to have a beauty with beast performance.

And if the only thing that matters to you is performance and risk free PC then Air cooler is what you need.

How to Choose the Right Type of Cooler?

So, after reading all these information, are you feeling a lil bit confused?

Truth be told, It's a wild confusing world out there when it comes to choosing the right type of cooler.

Air? Liquid? AIO? Let's pick the right type of cooler...

Air coolers

Air coolers are the easiest to install. They the cheapest and they give good performance too. Air coolers are the best if you want to stay relaxed thinking that, there will be no leaking of liquid.

The best thing is:

A good Air cooler can perform more or less like a liquid cooler and it is of reasonable price too.
Now there are many coolers which also look very gorgeous.

Want to know the best part?

Now the some good air coolers perform similar to aio liquid coolers or better in a low budget. Such a cooler is the “be quiet! Dark Rock Pro 4”

Some people may find problems for larger CPUs like the AMD Threadripper. And for this reason many people don’t buy an air cooler although supporting it the most.

So, here’s the kicker:

If you are looking for the best CPU air cooler for ryzen threadripper then the Wraith ripper is the best option for you now.

Air cooler: ​Pros & Cons

Pros

  • Risk free
  • Easy to install
  • Power Consumption is relatively less.

Cons

  • Can have clearance issues with the Ram modules.
  • Is not efficient for compact cases.
  • Absorbs the hot air form GPU.

AIO Liquid coolers

Liquid coolers look very amazing and they are also of reasonable price than that of custom liquid kits.

But your question might be:

Are AIO coolers worth it?

To answer this question I will say:

They perform the best and they also separate the hot air of GPU from the CPUs’ cooling.

There are a variety AIO coolers on market now which gives stunning performance.

This is crazy:

When you find some budget AIO liquid coolers and they perform very well.

Such a price worth cooler is the gorgeous ML 240R by cooler master.

We have an article of it’s in depth review. Be sure to check it out.

Liquid Cooler: Pros & Cons

Pros

  • Doesn’t absorb the hot air form GPU.
  • Efficient for compact cases.
  • Doesn’t have clearance issues with the Ram modules.

Cons

  • There is risk of leaking of the tubes.
  • Hard to install.
  • Power consumption is relatively high.

Custom liquid coolers

Now you are looking for a Beast cooling system.

Disclaimer:

There is nothing best than a custom liquid cooler in Performance, Aesthetics and High Price.

It is obvious that:

Liquid can cool a metal better than that of air.

And if you can cool that liquid or remove its heat to a good level then your PC will be cool enough for overclocked to bigger numbers of clocks and memory speeds.

The good thing is:

You can build custom liquid system according to your wish. You can add solutions of various coolers too.

The minimum parts you will need for building a liquid system are:

Water block, reservoir, pump, radiator & fans, fittings, tubings, cooling solutions and thermal paste.

You can buy this separately.

Or else you can buy custom liquid cooling kits which are a package of all the things you will need.

The best thing is:

You can bend the tubes as you like to make it more gorgeous.

You need to note that you need a good powerful PSU to run this kind of cooling system.

There are two types of tubing:

Hard tubing and Soft/Flexible tubing.

Hard tubing looks better but the problem is it needs all the fittings of the same size.

Some major problems are:

If you have hard tubing over the ram modules or the m.2 SSD then you will find difficulty to add or remove them.

If you don’t want those problems then you can use flexible tubes. It also makes the process of its installation easy and worth it. For the people who are upgrading their components frequently, I will not recommend the custom liquid cooling.

So, here’s the deal:

For those, to whom nothing really matters more than a Beast PC, custom liquid cooling is a must have for them.

Gamers can’t take their satisfaction to the highest level without having a custom Liquid cooled PC.

If are confused about which parts to buy for custom liquid cooling, and you want a simple solution for your problem. And if you don’t want to sacrifice the the beauty of RGB for any means then, I will suggest you to buy the thermaltake pacific m360 plus RGB kit.

It comes with almost everything you need to build the custom cooling system including the solution. And most of the parts have RGB illuminations on them too.

Final Thoughts

You might be wondering:

Which method will be the best for you to check both CPU and GPU temperatures at the same time?

My answer will be to use CPUID HWMonitor.

This app will let you see both CPU and GPU temperatures at the same time.

You also might be thinking:

Which will be the best pick among those methods for checking only CPU or GPU temperatures?

Then I will say:

Go for Bios for checking the CPU temperature only unless you are overclocking the processor.

And for checking GPU temperatures I will suggest you to use MSI After Burner as it supports all the graphics cards.

You may also like

>
